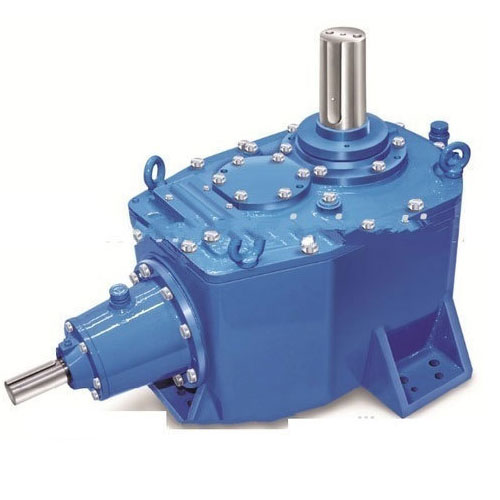

RANGE

Power range up to 650 KW.
Reduction ratio up to 20.9/11

CHARACTERISTICS

Case Hardened and Lapped steel spiral bevel gears to transmit the torque between right angleshaft. Unicase design with Pumpless Lubrication and three-point Foundation.

Sizes available from 140mm to 450mm center distance.

MAJOR APPLICATIONS

Cooling Tower and Heat Exchanger.

MAJOR INDUSTRIES

Cement & Aggregates, Chemicals, Food, Beverage & Tobacco, Material Handling, Metal Processing, Mining, Oil & Gas, Others, Packaging & Labeling, Paper & Paper Board, Pharmaceuticals, Power Generation, Rubber & Plastics, Water & Waste.

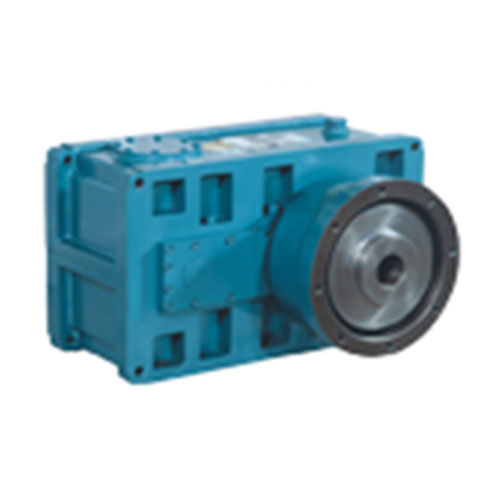

RANGE

Power range upto 1410 KW. Reduction ratio upto 25.6/1

CHARACTERISTICS

The gear units are quite capable to transmit the high torque required for pressurizing and plasticizing molding materials and also to absorb the high axial thrust load through built-in spherical roller thrust bearing. The axial bearing housing is standardized to accommodate suitable thrust bearings and corresponding output shafts with key are splinted.

Sizes available from 112mm to 355mm center distance.

MAJOR APPLICATIONS

Plastic Extrusion & PVC Extrusion

RANGE

Power range upto 1200 kW kWSizes : 8.5 ES / 8.5 Ex / 10P (2/3 stage)Sizes : BPV-150 to BPV-250 (2 stage) Bevel-Planetary

CHARACTERISTICS

Bevel-planetary gear units capable of taking large vertical downward thrust load. Cast Iron / Fab Case designed designed to absorb excess vibration during running of mill

Sizes available from 760 mm to 1000 mm center distance.

MAJOR APPLICATIONS

Vertical Coal Pulverizing

MAJOR INDUSTRIES

Cement & Aggregates, Chemicals, Food, Beverage & Tobacco, Material Handling, Metal Processing, Mining, Oil & Gas, Others, Packaging & Labeling, Paper & Paper Board, Pharmaceuticals, Power Generation, Rubber & Plastics, Water & Waste.
